The 204 Ruger is often hailed as the “Velocity King” of standard commercial varmint cartridges. Introduced in 2004 through a partnership between Ruger and Hornady, this caliber was designed to fill a specific niche: delivering blisteringly high speeds with a trajectory so flat that holding over for distance becomes almost unnecessary out to 300 yards. Based on the 222 Remington Magnum case necked down to accept .204-inch diameter bullets, it offers shooters a significant ballistic advantage over the 223 Remington in terms of drop and velocity, while producing less recoil than the 22-250 Remington.
This article focuses specifically on ballistics, analyzing how the 204 Ruger performs from the muzzle out to 500 yards and beyond. We will break down its external flight characteristics – including drop, wind drift, and energy retention – and examine its terminal performance through detailed wound ballistics profiles. Whether you are targeting prairie dogs at extreme ranges or hunting coyotes in open country, understanding these ballistic nuances is critical for success. The goal is to provide clear, actionable data that helps you choose the right load for your specific application.
Core External Ballistics
The primary appeal of the 204 Ruger is its speed. Factory loads commonly push 32-grain bullets past 4,200 fps and 40-grain bullets near 3,900 fps. This immense velocity creates a “laser-like” trajectory that minimizes the margin of error for range estimation. However, because the bullets are lightweight, they interact with environmental factors differently than heavier calibers. Understanding the interplay between velocity, ballistic coefficient (BC), and bullet weight is essential for mastering this cartridge. The data below compares three distinct load types: the ultra-light 24-grain lead-free option, the standard 32-grain varmint load, and the heavier 40-grain option designed for better wind resistance.

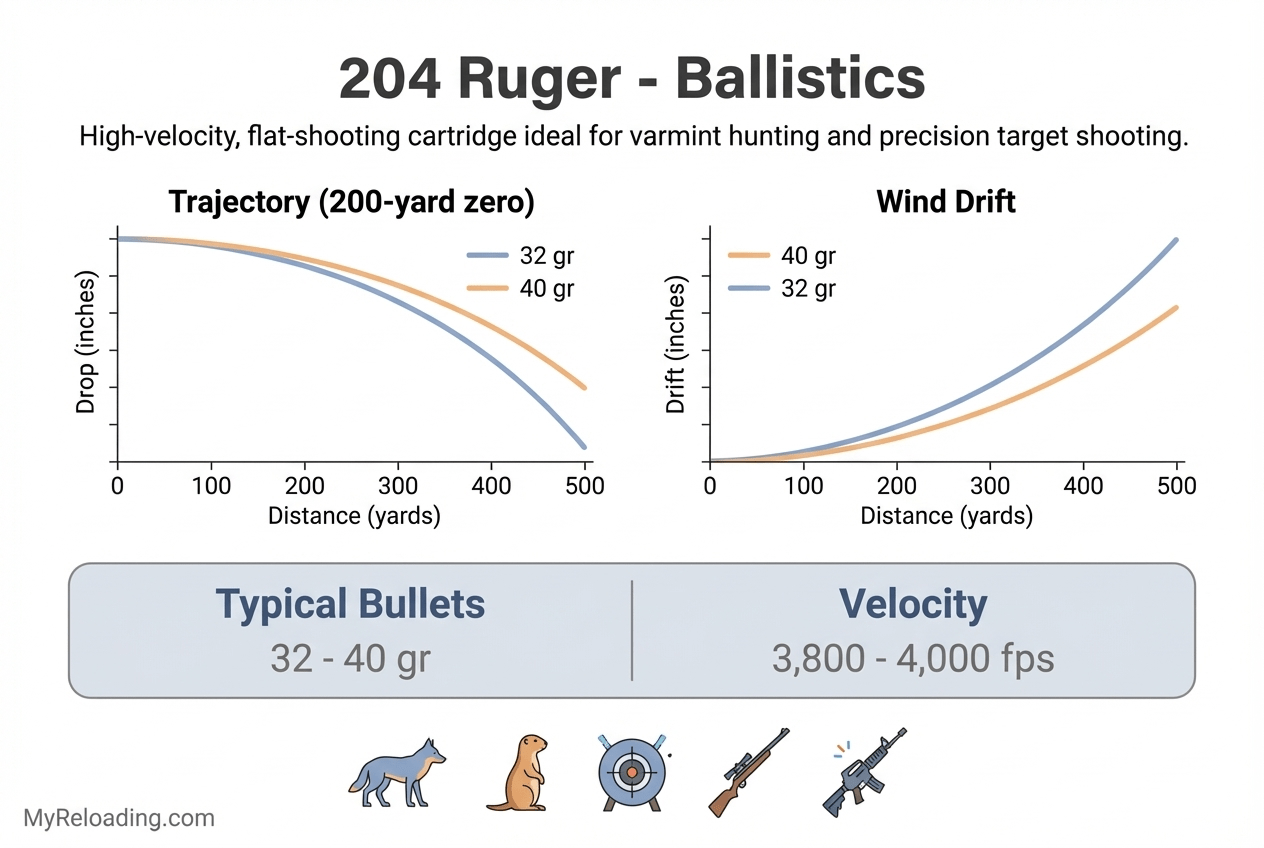

Bullet Drop to 1000 Yards
The following table illustrates bullet drop in inches for three common 204 Ruger loads, all zeroed at 100 yards. While many varmint hunters prefer a 200-yard zero, a 100-yard zero provides a clear baseline to visualize the raw drop characteristics of the cartridge.
| Range (Yards) | 24gr Hornady NTX (4400 fps) | 32gr Hornady V-MAX (4225 fps) | 40gr Hornady V-MAX (3900 fps) |
|---|---|---|---|
| 100 | 0.0 | 0.0 | 0.0 |
| 200 | -1.0 | -1.2 | -1.5 |
| 300 | -5.6 | -5.9 | -6.9 |
| 400 | -15.1 | -15.5 | -17.2 |
| 500 | -31.5 | -31.8 | -33.8 |
| 600 | -57.8 | -57.9 | -58.5 |
| 700 | -96.5 | -95.8 | -93.5 |
| 800 | -152.0 | -149.5 | -142.0 |
| 900 | -229.0 | -224.0 | -208.0 |
| 1000 | -335.0 | -325.0 | -295.0 |
The data reveals the incredible flatness of the 204 Ruger inside 300 yards. With a 100-yard zero, the drop at 300 yards is less than 7 inches for all loads, which is remarkably superior to standard 223 Remington loads that might drop 10-12 inches at the same distance. For the varmint hunter, this means that on a target the size of a coyote’s vitals, you can hold dead-on out to nearly 250 yards without adjusting. The 24-grain NTX, despite its lower ballistic coefficient, starts with such high velocity that it remains the flattest shooting option out to about 400 yards. However, beyond 500 yards, the 40-grain bullet begins to overtake the lighter projectiles. Its higher ballistic coefficient allows it to retain velocity more efficiently, leading to less drop at extreme ranges (800-1000 yards). It is important to note, however, that while the drop numbers at 1000 yards are listed, the 204 Ruger is practically limited to about 500-600 yards for ethical kills on varmints due to energy loss. For a deeper dive into how velocity affects trajectory, see our external ballistics guide.
Wind Drift (10 mph Crosswind)
Wind drift is often cited as the Achilles’ heel of sub-caliber rounds like the .204. The table below shows horizontal drift in inches with a 10 mph full-value crosswind.
| Range (Yards) | 24gr Hornady NTX | 32gr Hornady V-MAX | 40gr Hornady V-MAX |
|---|---|---|---|
| 100 | 0.8 | 0.9 | 0.7 |
| 200 | 3.5 | 3.8 | 2.9 |
| 300 | 8.4 | 9.0 | 6.8 |
| 400 | 16.0 | 16.9 | 12.6 |
| 500 | 26.8 | 28.2 | 20.8 |
| 600 | 41.5 | 43.5 | 31.5 |
This analysis highlights a critical decision point for 204 Ruger shooters: speed versus aerodynamic efficiency. The 32-grain load, while faster, suffers significantly more wind drift than the 40-grain option. At 400 yards, the 40-grain bullet drifts approximately 4 inches less than the 32-grain bullet. In the field, where wind estimates are rarely perfect, this difference can easily mean a miss on a small prairie dog. The 40-grain V-MAX, with its superior BC of .275 (compared to .210 for the 32-grain), is the clear choice for days when the wind is gusting. Conversely, the 24-grain and 32-grain loads are best reserved for calm days where their flat trajectory can be fully utilized. Shooters transitioning from a 22-250 Remington will find the wind drift of the 40-grain 204 load surprisingly comparable, proving that modern bullet design can compensate for lighter mass. For more on reading wind, check our wind drift compensation guide.
Energy Retention
Energy is the measure of the bullet’s hitting power, expressed in foot-pounds (ft-lbs). For varmints, massive energy dump is required to ensure quick, humane kills.
| Range (Yards) | 24gr Hornady NTX | 32gr Hornady V-MAX | 40gr Hornady V-MAX |
|---|---|---|---|
| 0 (Muzzle) | 1032 | 1268 | 1351 |
| 100 | 717 | 944 | 1077 |
| 200 | 494 | 699 | 855 |
| 300 | 334 | 512 | 674 |
| 400 | 218 | 367 | 526 |
| 500 | 137 | 257 | 405 |
The energy table underscores the practical range limitations of the cartridge. While the muzzle energy is impressive – exceeding 1200 ft-lbs for standard loads – it bleeds off relatively quickly due to the low mass of the projectiles. By 500 yards, the 32-grain bullet has dropped to around 250 ft-lbs, which is roughly the energy of a high-velocity .22 Long Rifle at the muzzle. This is sufficient for small rodents like ground squirrels, but marginal for larger predators like coyotes. The 40-grain bullet retains significantly more authority, keeping over 500 ft-lbs of energy out to 400 yards. This makes the 40-grain option the only ethical choice for coyote hunting at extended distances. The rapid energy decay also explains why 204 Ruger bullets often fail to exit on coyotes; they dump 100% of their energy inside the target, which is ideal for saving pelts but requires precise shot placement to avoid surface splashes on shoulder bones. For comparisons on killing power, see our terminal energy analysis.
Terminal & Wound Ballistics
Wound ballistics in the 204 Ruger is defined by one word: explosive. Because the velocity is so high, the hydraulic shock imparted to tissue is devastating. The bullets are designed with thin jackets and polymer tips to initiate fragmentation immediately upon impact. This results in a “red mist” effect on small varmints and massive internal cavitation on larger predators. Unlike heavy-game calibers that rely on controlled expansion and penetration, the 204 Ruger relies on violent, instant energy transfer. This section profiles the most common projectiles to help you select the right tool for the job. For a broader understanding of these mechanisms, visit our wound ballistics breakdown.
Bullet Performance Profiles (5 Most Common Loads)
Hornady 32gr V-MAX
- Type: Polymer-tipped, swaged lead core, thin copper jacket.
- Behavior: This bullet is the gold standard for the caliber. It fragments violently within the first 1-2 inches of penetration. On prairie dogs, it creates massive disruption; on coyotes, it typically dumps all energy internally with no exit wound.
- Use: Ideal for high-volume varmint shooting (prairie dogs, ground squirrels) and saving fur on coyotes.
- Effective Range: 0 to 400 yards.
- Short Summary: The “go-to” factory load that defined the caliber, offering a perfect balance of speed and terminal explosiveness.
More details available in our dedicated Hornady V-MAX profile.
Hornady 40gr V-MAX
- Type: Polymer-tipped, slightly longer profile for higher BC.
- Behavior: Similar explosive fragmentation to the 32gr but carries more momentum. It penetrates slightly deeper before fragmenting, making it more reliable for quartering shots on predators.
- Use: Long-range varminting and coyote hunting where wind is a factor.
- Effective Range: 0 to 600 yards.
- Short Summary: The superior choice for experienced shooters who need wind resistance and extended killing power.
More details available in our dedicated Hornady V-MAX profile.
Sierra 39gr BlitzKing
- Type: Acetyl resin tipped, boat-tail design.
- Behavior: Known for extreme accuracy and a very high ballistic coefficient (.287) for its weight class. Terminal performance is comparable to the V-MAX but often cited as being slightly more “hard-hitting” due to the design.
- Use: Precision varmint matches and long-range predator hunting.
- Effective Range: 0 to 600 yards.
- Short Summary: A favorite of handloaders seeking the absolute best ballistic coefficient in a sub-40 grain bullet.
More details available in our dedicated Sierra BlitzKing profile.
Nosler 32gr Ballistic Tip (Lead Free/Varmint)
- Type: Polymer-tipped, available in standard and Lead-Free (BTLF) copper alloy versions.
- Behavior: The lead-free version is unique; it uses a frangible copper core that turns to dust upon impact. This prevents ricochets and meets non-toxic regulations without sacrificing the “explosive” effect.
- Use: Mandatory in lead-free zones (like California) and excellent for high-volume shooting over sensitive land.
- Effective Range: 0 to 350 yards.
- Short Summary: The ethical choice for environmentally conscious hunters or those in restricted zones.
More details available in our dedicated Nosler Ballistic Tip profile.
Hornady 24gr NTX
- Type: Non-Traditional Expanding (NTX) lead-free core, polymer tip.
- Behavior: Screaming fast at 4400 fps. The rotational forces alone are immense. Upon impact, the core disintegrates instantly. Penetration is very shallow (often less than 4 inches).
- Use: Strictly for the smallest varmints (ground squirrels) at close-to-medium range. Not recommended for coyotes.
- Effective Range: 0 to 300 yards (energy bleeds off fast).
- Short Summary: A specialty speed demon for producing spectacular hits on tiny targets inside 300 yards.
More details available in our dedicated Hornady NTX profile.
Practical Summary
The 204 Ruger has cemented its place as a premier varmint cartridge by offering a unique blend of high velocity, low recoil, and flat trajectory. For the shooter, this translates to “point-and-shoot” simplicity in the field. If you are targeting prairie dogs or ground squirrels, the 32-grain V-MAX or 24-grain NTX are spectacular choices that provide instant termination and minimal ricochet risk. For those pursuing coyotes or bobcats, particularly in windy conditions or at ranges past 300 yards, the 40-grain V-MAX or 39-grain Sierra BlitzKing are the superior tools. They trade a small amount of muzzle velocity for significantly better energy retention and wind drift resistance, ensuring ethical kills on larger predators.
However, users must be mindful of barrel heat; the high volume of powder relative to the small bore diameter heats barrels quickly, so pacing your shots during high-volume days is essential to maintain accuracy and barrel life. Ultimately, the 204 Ruger is a specialist’s tool – it does not try to be a deer cartridge or a tactical round. It is a purebred varminter. For further reading, explore our detailed comparisons of the 204 Ruger vs 223 Remington or dive into our gel testing archives to see more terminal performance data.
